ESP32-DevKitC V4 is a small-sized ESP32-based development board produced by Espressif. Most of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-DevKitC V4 on a breadboard. Sep 18, 2016  The nano32 definitely seems to be a very general purpose development board, similar to the Arduino Nano – just that the ESP32 can actually deliver a whopping 650 DMIPS. And not to forget high speed Wi-Fi connectivity and Bluetooth radio.

Electrical schematic PDFs for development boards & modules designed by Espressif:
Note: This list is no longer updated. Latest reference designs can be downloaded from http://espressif.com/en/support/download/documents
Previously Published Development BoardsModulesOlder Development BoardsThe IDF hardware reference documentation also contains links to these schematics:
http://esp-idf.readthedocs.io/en/latest ... index.html
To ask a question about a particular board or module, please start a new thread.

This tutorial shows how to use the new advanced ESP-IDF project subsystem to create projects based on the ESP-IDF framework. Unlike MSBuild-based projects, ESP-IDF based projects do not require a specific version of ESP-IDF and provide the best level of integration with various ESP-IDF components and settings.

Before you begin, install VisualGDB 5.4 or later and the latest ESP32 toolchain.

We will now build the basic “Hello, World” sample from ESP-IDF and show how to use VisualGDB to edit and debug it.

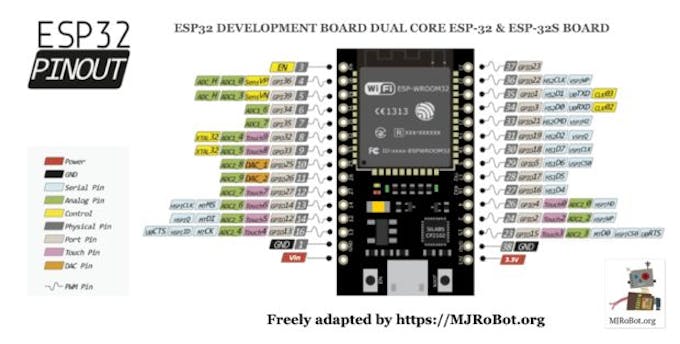

Esp32 Development Kit

1. Start Visual Studio and open the ESP-IDF Project Wizard:
2. Select “Create a new project based on a sample project” and click “Next”:
3. On the next page select your ESP32 toolchain. If you don’t have it installed yet (or are not using the latest toolchain, click “download” in the toolchain selector to install it automatically):
   Once the toolchain is selected, ensure you select the ESP-IDF checkout you want to use. We recommend starting with the default checkout included in the toolchain; once you confirm that the project building and debugging works, you can install another ESP-IDF release directly from Github via VisualGDB Project Properties.
4. On the next page select a sample project you want to use. In this example we will use the hello_world project to demonstrate the basics of building and debugging:
5. Finally select your debug method. If you haven’t done this before, follow this tutorial to setup JTAG debugging for your board:

6. Press “Finish” to create the project. VisualGDB will launch the ESP-IDF build system to query the precise project structure:
7. Once the project structure is loaded, VisualGDB will display it in Solution Explorer and will open the main source file:If you are using a preview VisualGDB build, you may get a spurious “found 1 additional include directory” message immediately after creating the project. It is shown because the project is missing some include files that are generated on first build. Simply build the project and re-open your source file to eliminate the message.
8. VisualGDB will use the ESP-IDF build scripts to build the project, producing exactly the same result as if you were using command-line tools. It will automatically detect the number of CPU cores on your machine and run a multi-threaded build using the corresponding amount of threads:
9. If you are using the Custom edition or higher, Open VisualGDB Project Properties and enable raw terminal on the COM port corresponding to your ESP32 board. If not, use any other terminal program to connect to it:
10. Set a breakpoint in app_main() and start debugging. The breakpoint will hit and you will see the output printed by the board:
11. You can use the Threads window to see the state of different threads of your program:
12. Now we will show how to add new source files to your ESP-IDF projects. Stop debugging, right-click on “Source Files” and select “Add->New Item”:
13. Then choose “C++ Source File” and add “subdir” to the location field:
14. VisualGDB will automatically edit the COMPONENT_SRCDIRS variable in the corresponding component.mk file to reference the new directory. This will also work when adding existing files.
    Note that adding one file from a directory will automatically add all source files from the same directory due to the way ESP-IDF handles source files. If this happens, VisualGDB will let you double-check the implicitly added files before proceeding.
15. Add a new function in the newly created source file:
16. Now create a header and declaration for this function. Note that if you want the header to be used by both C and C++ files, you need to use conditionally compiled extern “C” wrapper:

    </div><div><table><tbody><tr><td><div><div>2</div><div>4</div><div>6</div><div>8</div><div>10</div><div>12</div></div></td><td><div><div><span>extern</span><span>'C'</span></div><div><span>#endif</span></div><div><span>void</span><span>func</span><span>(</span><span>)</span><span>;</span></div><div><span>#ifdef __cplusplus</span></div><div><span>#endif</span></div></div></td></tr></tbody></table></div></div><br /></li><li>Include <header.h> from your main file. VisualGDB will automatically suggest adding “subdir” to the include directory list:<br /></li><li>Click “Add now” and VisualGDB will automatically insert the correct relative path to component.mk:</li><li>If the header case doesn’t match the case of the physical file name, VisualGDB will show a warning and let you automatically fix it so you will be able to build the your sources on case-sensitive Linux systems:<br /></li><li>You can also use the regular VS property pages to edit various project/target properties. See how the “subdir” is now shown in the “additional include directories” field:</li><li>You can configure various properties of the ESP-IDF projects using the first page of VisualGDB Project Properties. This is equivalent to the the “make menuconfig” command, but provides an easier searchable graphical interface:<br /></li><li>For each ESP-IDF-based project VisualGDB will automatically parse the ESP-IDF sources and make them available to the Find All References, Go To Definition and Code Map. You can use these features to explore the relations between different parts of ESP-IDF and to diagnose tough problems:</li><li>Note that for debug configurations ESP-IDF will use the “-Og” optimization setting instead of “-O0”. This doesn’t affect most of debugging functionality, however can make some scenarios less convenient (e.g. may eliminate unused variables created just for checking values via watch). You can override this via Project Properties for your project or specific components:</li><li>DO NOT use this setting for built-in ESP-IDF components, as it would result in random crashes. If your project suddenly stops working after using this setting, double-check all component.mk files for the code replacing -Og with -O0 and remove it if necessary (or simply disable the setting via Project Properties so VisualGDB will remove those lines for you):</li></ol><h3>Esp32 Dev Kit</h3><p>If you want to check the project into a source control system, such as Git, simply check in the files in the project directory (including the <strong>.vgdbproj</strong> and <strong>.sln</strong> files) and add the following subdirectories to <strong>.gitignore</strong>:</p><h3>Esp32 Dev C Bomb</h3><img src='https://dl.espressif.com/dl/schematics/pictures/esp-wrover-kit-v4.1-front.jpg' alt='Esp32' title='Esp32' /><h3>Esp32 Projects</h3><ul><li>CodeDB (contains IntelliSense cache)</li><li>VisualGDB (contains built objects and libraries)</li><li>VisualGDBCache (contains parameters queried from the toolchain)</li></ul></p> <div class="gap"></div> </div> <div class="gap"></div> <div id="single-nav" class="clearfix"> <div id="single-nav-left">« <strong><a href='/vst-autotune-plug-in-download-free'>Vst Autotune Plug In Download Free</a></strong></div> <div id="single-nav-right"><strong><a href='/daisydisk-dlya-windows'>Daisydisk Для Windows</a></strong> »</div> </div> <div class="comments"> </div> </article> </div> <div id="sidebar"> <div class="box clearfloat"><div class="boxinside clearfloat"><form method="get" id="searchform" action="#"> <div> <input type="text" value="Search" name="s" id="s" onfocus="if (this.value == 'Search') {this.value = '';}" onblur="if (this.value == '') {this.value = 'Search';}" /> <input type="submit" id="searchsubmit" value="Go" /> </div> </form> </div></div> <div class="box clearfloat"><div class="boxinside clearfloat"> <h4 class="widgettitle">MOST POPULAR ARTICLES</h4> <ul> <li><a href='/download-cooking-dash-for-pc-full-version-free'>: Download Cooking Dash For Pc Full Version Free</a></li> <li><a href='/traktor-pro-2-271-patch'>: Traktor Pro 2 2.7.1 Patch</a></li> <li><a href='/auto-tune-pro-8-cracked'>: Auto-tune Pro 8 Cracked</a></li> <li><a href='/super-quartet-vst-free-download'>: Super Quartet Vst Free Download</a></li> <li><a href='/vst-to-rtas-adapter-free-download'>: Vst To Rtas Adapter Free Download</a></li> <li><a href='/dev-c-sqrt-problems'>: Dev C++ Sqrt Problems</a></li> <li><a href='/auto-tune-81-fl-studio-12'>: Auto Tune 8.1 Fl Studio 12</a></li> <li><a href='/c-dev-youtube'>: C Dev Youtube</a></li> </ul> </div></div> </div> <div id="footerads"> </div> </div> </div> <div id="bottom-menu"> <div id="bottom-menu-inner" class="clearfix"> <div id="bottom-menu-1"> </div> <div id="bottom-menu-2"> </div> <div id="bottom-menu-4"> </div> </div> </div> <div id="footer"> <div id="footer-inner" class="clearfix"> <div id="footer-left"> Copyright © 2021 <a href="/" title="Luckybang" >Luckybang</a> </div> <div id="footer-right"> </div> </div> </div> </div> </body> </html>
